FWDM,i.e. Filter Wavelength Division Multiplexing,widely used for triple-play integration network,FTTH etc.FWDM have three wavelengths 1310/1490/1550nm,three end ports-COM,Pass(pass one or two wavelengths of 1310/1490/1550nm),Reflect(reflect other wavelengths except for the pass wavelengths)
1)Low insertion loss
2)Broadband transmission
3)High isolation
4)High stability and reliability
1)Line monitoring
2)WDM system
3)Fiber optical amplifier
4)Triple-Play FTTH
1.Parameter
| Operating Central Wavelength(nm) | 1310/1490/1550 |
| Bandwidth Wavelength (nm) | 1310±50,1490±10,1550±10 or custom |
| Insertion Loss@Transmission(dB) | 0.6 |
| Insertion Loss@Reflection(dB) | ≤0.4 |
| Isolation@Transmission(dB) | >50 |
| Isolation@Reflection(dB) | >18 |
| PDL(dB) | ≤0.1 |
| Directivity(dB) | >55 |
| Return Loss(dB) | >60 |
| Fiber Type | G657A1 |
| Operating Temperature(℃) | -10 to +70 |
| Storage Temperature(℃) | -40 to +85 |
| Package | Steel Tube,ABS Box,1U Rack Mout |

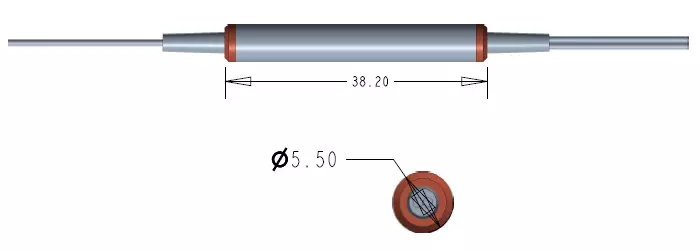

2.Steel Tube Package Drawing
3.ABS Box Package Drawing
4.1U Rack Mount Package Drawing
