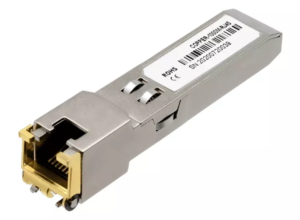

10G Copper SFP+ supports 10GBASE-T Ethernet applications, and is backward compatible with 5GBASE-T/2.5GBASE-T/1000 BASE-T applications, and the transmission distance of Cat 6a7 network cable can reach 30m. It is widely used in 10G PON uplink and interface conversion of network devices.
1) Support 10G BASE-T operationin Host Systems
2)Hot-pluggable SFP/SFP+ footprint
3)Up to 30m using Cat 6a/7 Cable
4)No support TX_ disable and with Link function
5)Compliant with SFF-8431 and SFF-8432 MSA
6)Low power dissipation(1.2W typical)
7)Fully Metallic Enclosure for Low EMI
8)Compliant with IEEE 802.3az Compliant
9)Single +3.3V power Supply
10)Compact RJ-45 connector assembly
11)RoHS compliant and lead-free
12)Operation Temperature Range 0~70°C or -40~85°C optional
| Description | Data Rate | Reach | Connector | Rx_LOS | Tx Disable |
| 10/100/1000M SFP | 10/100/1000 Mbps | 100M | RJ45 | YES | YES |
| 10G Copper SFP+ | 10Gbps | 30M | RJ45 | YES | YES |
