MTP/MPO trunk cable,also call MTP/MPO patch cord, is a type high density connector,including 8F,12F,24F,48F even 144F,used for datacenter,FTTH,and other need high density network.
1)Low insertion loss
2)High return loss
3)Good repeatability and interchange
4)Excellent environmental adaptability
5)Meet IEC61754 , TIAFOCIS 5/604-5 , bell core GR-143
1)Data center
2)FTTH
3)Premise installations
4)Optical test equipment
5)40 and 100Gbps protocols
1.Connector Performance Specifications
| Parameter | Single Mode | Multi mode |
| Polish | PC,APC | PC,APC |
| Connector Type | MTP/MPO | MTP/MPO |
| Insertion Loss@MTP/MPO | Standard≤0.7dB，Elite≤0.35dB | Standard≤0.5dB，Elite≤0.3dB |
| Return Loss | PC>50dB,APC>60dB | >30dB |
| Durability(500 matings) | ≤0.2dB | ≤ 0.2dB |
| Test wavelengths | 1310/1550nm | 850/1300nm |
2.Cable Performance Specifications
| Fiber Type | OS2,OM1,OM2,OM3,OM4 |
| Fiber Core | 8,12,24,48,96,144 cores |
| Cable Diamenter | 3.0mm,5.5mm or custom |
| Jacket Color | Yellow,Orange,Aqua,Purple |
| Jacket Material | OFNR,OFNP,PVC,LSZH |
| Tensile Strength | 500N |
| Operating Temperature | -40°C to 75°C |
| Storage Temperature | -40°C to 85°C |

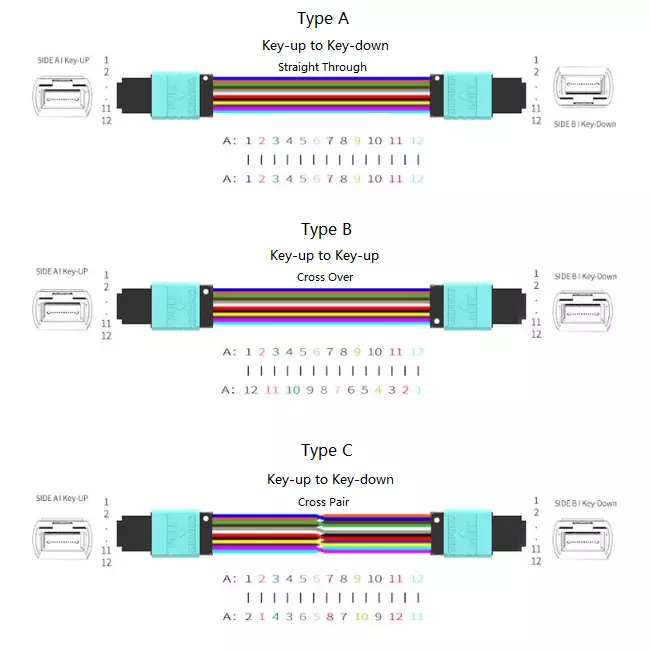

3.MTP/MPO Polarity

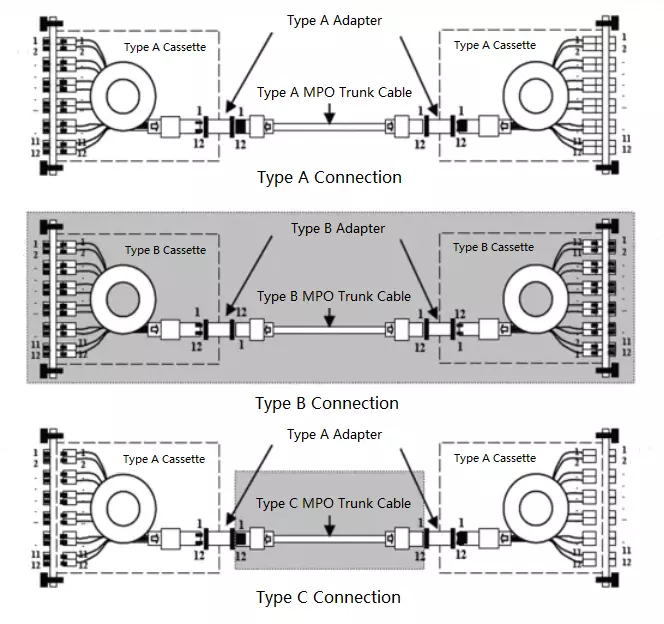

4.MTP/MPO Connection
